| The
        KM201 is a studio quality true condenser
        microphone of very durable construction. Its modular design allows the
        use of the following polar patterns:
        cardioid (comes along with the microphone as a standard cardioid pattern
        head), omnidirectional and supercardioid heads (ordered optionally). For
        the occasions of frequent replacement of the microphone heads, the advanced
        spring contact cup design and the head guiding gutter of the microphone
        preamplifier module prevent the heads contact pin from scratches
        and the threads from cross threading. The microphones wide range
        frequency response has been tuned to accurately reproduce the sound of
        any string or brass, ambience acoustic, voice, drums and percussion. The
        microphones small dimensions make it possible to position the microphone
        in relation to the sound source at any angle and in any situation.

 | ||

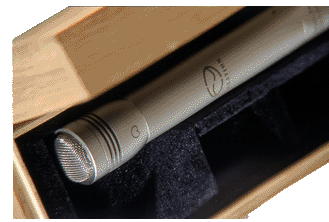

|  | OPTIONAL ACCESSORIES Oak wooden case with the soft pad and two compartments forthe omnidirectional and supercardioid heads. Microphone clip...........black Windscreen...................black |  |
| Frequency range, Hz | 20-20000 |
| Polar pattern | cardioid |
| Free field sensitivity (at 1000 Hz), mV/Pa | 15 |
| Maximum Sound Pressure Level, (at less than 0,5% THD), dB | 140 |
| Self-noise (no more then), dBA | 14  |
| Signal to noise ratio rel. to 1 Pa (dB) | 80 |
| Dynamic range (dB) | 126 |
| Supply voltage (phantom, V) | 48 |
| Current consumption, mA | 2,5 |
| Dimensions: diameter (max),mm | 24 |
| length, mm | 130 |
| Weight, kg | 0.120 |

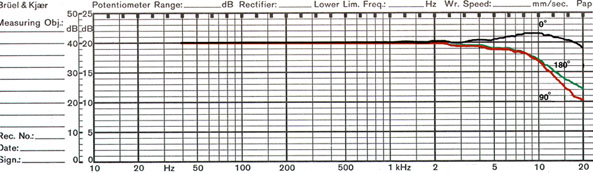

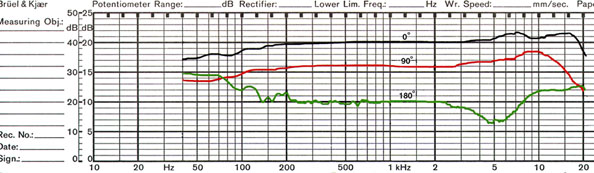

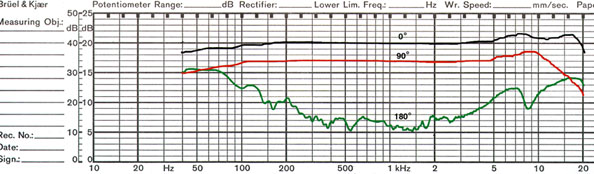

| TYPICAL
        FREQUENCY RESPONSE CURVE | ||
| Cardioid | Omnidirectional | Supercardioid |
| To
        see the large print of the curve click on the image of the curve | ||
|
